Unemployment Insurance Handbook for Employers (UCB-201-P)
Section 4 - Wage Reporting

PART 3 - Wage File Upload Data Formats

Tab-Delimited Text File Format - Alternative 4

The online tax and wage reporting application can accept and process text files in a tab-delimited format that is similar to our WI UI Format. This allows employers and agents who maintain and submit quarterly wage data using Excel to convert an Excel file to a tab-delimited text format in order to upload a wage report file online. Following are instructions for converting a wage report from an Excel format to a tab-delimited format accepted by the online reporting application:


Step 1 – Create the Wage Report in Excel

The Excel file must include the same data required for the WI UI Format (Alternative 1), organized in the following manner:

Location Field Length Description & Remarks
A Employer UI Account Number 10 Enter Your 10-digit UI Account Number without dashes or spaces. (Example: If your account number is 123456-000-7, column A should contain 1234560007).
B Reporting Period
Quarter Year (QYY)
3 Enter Quarter and Year to which this report applies (e.g.,109 for the first quarter of 2009).
C Social Security Number 9 Enter the 9-digit Social Security Number with no spaces or dashes. If not available, fill with zeroes.
D Last Name 10 Enter the last name for the employee. Please note that the last name column must precede the first name column.
E First Name 8 Enter the first name for the employee.
F Employee Quarterly UI Total Gross Wages 9 Enter the employee’s quarterly wages including a decimal point to show dollars and cents. Do not report negative wage amounts or use ‘+’ to indicate a positive wage amount.
G Record Code 2 Should ALWAYS contain '01.’ If possible, do not format the column to truncate leading zeroes; using the text format for this column is recommended.

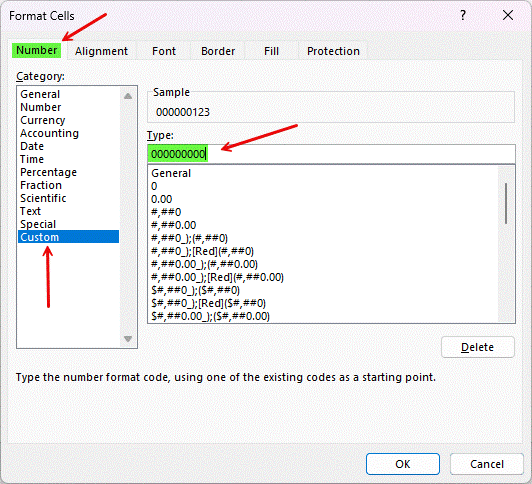

Note: The wage amounts in the Excel file must contain decimal points for the file format to be valid. In order to ensure that decimal points are not automatically dropped from your wage amounts (e.g., 200.00 to 200) when saving the Excel file to the tab-delimited format, make sure that Column F in the Excel file is formatted properly. Highlight the wage amounts in that column and right click to select Format Cells. In the Number tab, select Text so that the wage amounts remain exactly as entered.

Below is an example of an Excel wage report file that is formatted according to the specifications above:

Example 1

Note that in the above example, the column headings in row 1 are included only to denote what data belong in each column. The headings must be removed prior to saving the file in the tab-delimited format so the file looks like the following example:

Example 2

Do not combine the last and first name in one column. Omit titles, e.g., Mr., Mrs., Ms., DR or MD, from the name field(s). Use uppercase letters only. Do not use punctuation. Parts of a compound surname must be connected by a hyphen. Do not separate leading letters (e.g,. ‘O,’ ‘Mc,’ etc…) from the rest of the surname. Middle initials must be entered as part of the first name, after the first name (e.g., BEN A). If an employee has just one name (e.g., Cher), enter it in the Last Name column. The following screenshot shows examples of acceptable name entries using columns D and E:

Example 3


Step 2 – Save Excel File in a Tab-Delimited Format

In your Excel file, select File > Save As to bring up the Save as window.

(Note: To ensure a properly formatted file, we recommend selecting only those cells that contain wage report data prior to selecting File > Save As to bring up the Save as window. To do this, you can select the A1 cell in your Excel file and then on your keyboard press Shift + Ctrl + End simultaneously. You can also manually select the cells containing your wage report data by dragging your mouse over the desired cells.)

In the Save in field, browse to the desired location on your PC to which to save your file. Then enter a file name in the File name field. In order to convert your Excel file to a tab-delimited format, use the down arrow in the Save as type field and choose Text (Tab delimited)(*.txt) from the list of file types.

Example 4

You may receive a warning about the file type not supporting workbooks with multiple sheets. Click OK to save only the active sheet.

Example 5

If you receive a warning about the file containing features not compatible with Text (Tab delimited), click Yes to keep this format.

Example 6

You have now created a tab-delimited text file that contains your wage report data. Locate the text (.txt) file you saved in the location to which you saved it on your PC.

Example 7

If you open the text file, it should look similar to the example text file below:

Example 8

You can see in the above text file example that not all of the columns line up exactly; do not be alarmed if this is the case with your file. All of the individual data elements in each row are still separated by a tab, so the system will still be able to process the data elements correctly.


Step 3 – Upload your text file using the Online Tax and Wage Reporting System

You are now ready to upload your text wage report file using the online Tax and Wage Reporting System. To do this, visit our website at http://unemployment.wisconsin.gov. Select the link to File Tax and Wage Reports and login to the online reporting application. Access the Wage Report File Upload screen, enter the required contact information and click on Next. Then select the type of file you are uploading (original, replacement or append). Then click on the Browse button to locate the tab-delimited wage report text file you created and saved on your PC.

Example 9

Once you have attached your wage report file, click on the Submit button. You can also test your wage report file before submitting it to satisfy quarterly reporting requirements using our Test Wage Report File Upload screen, also located in the online Tax and Wage Reporting system. By uploading a wage report file using the Test Wage Report File Upload screen, you can test your file to make sure the file format is correct and that it does not contain content errors that would cause any report(s) within the file to be rejected.

If you have further questions regarding uploading wage report files or converting Excel files to a tab-delimited format, you may contact us at the following phone number and e-mail address: By Phone: (608) 266-6877 Monday – Friday, 8 AM to 4:15 PM By E-mail: wagenet@dwd.wisconsin.gov


Updated: March 1, 2013

Content Contact: UI Wage Reporting
